Key Takeaways:
- MIL-STD-171 is Essential for Durability and Performance: This standard ensures that metal surfaces are adequately protected against corrosion, wear, and mechanical stress in military and aerospace applications.
- Surface Preparation is Crucial: Proper cleaning, de-scaling, and mechanical treatments are key to ensuring that finishes adhere correctly and provide the desired protection, improving the overall performance of military equipment.
- Quality Control and Compliance are Non-Negotiable: Rigorous testing methods and quality control measures, including corrosion, adhesion, and hardness testing, ensure that all finishes meet the high standards required for military and aerospace industries.
What Is MIL-STD-171?
MIL-STD-171 is a comprehensive military standard established to guide the selection, application, and inspection of finishes for metal and plastic surfaces in military equipment. Essential in the aerospace, defense, and space sectors, this standard ensures durability, performance, and consistency in surface treatments and coatings. It specifies performance requirements for different coatings such as paints, plating, anodic, and organic finishes applied to various substrates.
At Valence Surface Technologies, we understand the significance of adhering to MIL-STD-171. As the only fully integrated surface finishing solution for the aerospace, defense, and space industries, we employ meticulous methods to comply with and exceed military specifications.
Contact us today to discuss your project requirements and how we can support your endeavors with our industry-leading surface finishing techniques. With Valence, you’re not just choosing a service provider—you’re choosing a partner committed to your success.

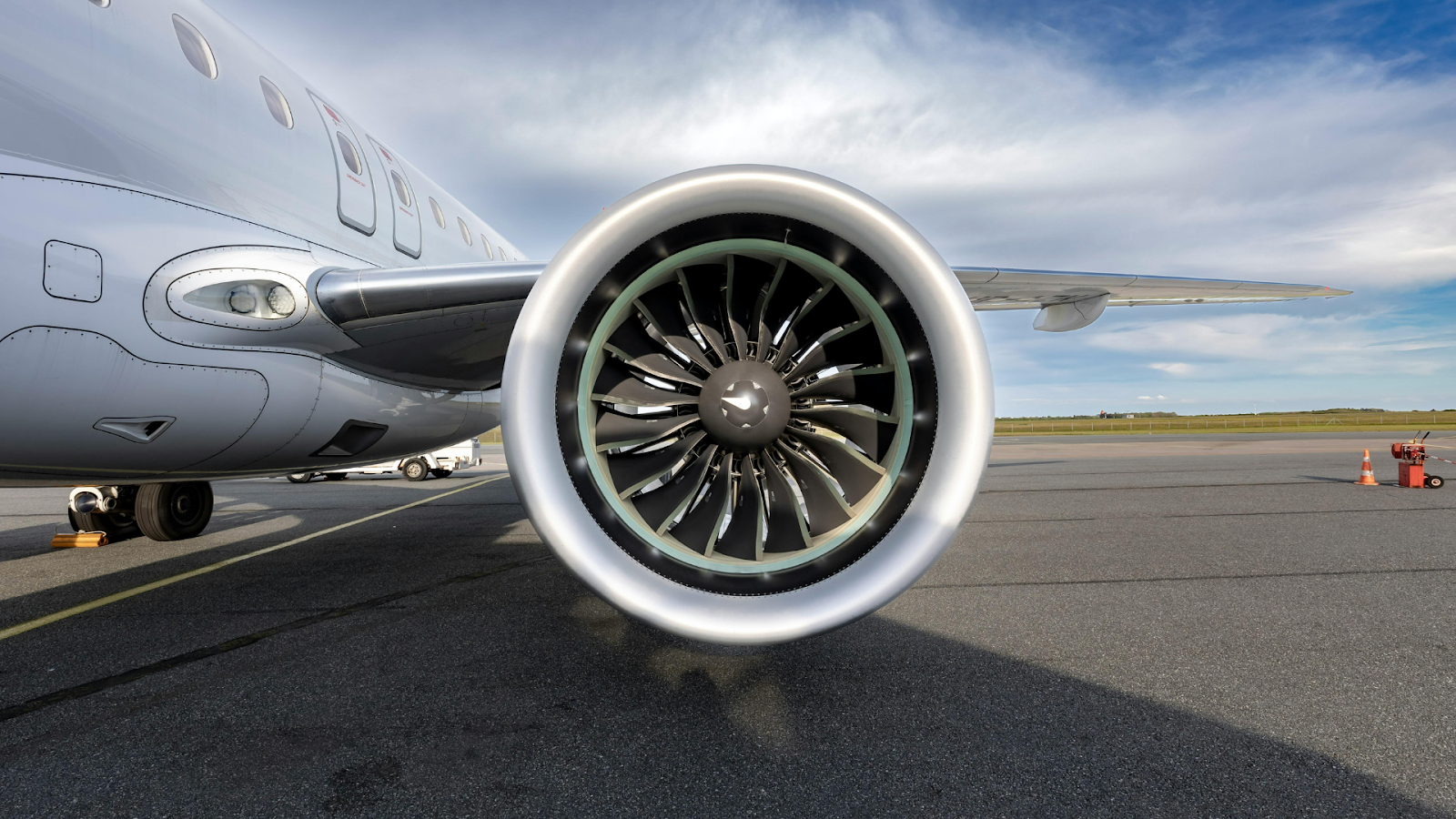

The Importance Of MIL-STD-171 In Military And Aerospace Manufacturing
MIL-STD-171, “Finishing of Metal Surfaces,” plays a crucial role in military and aerospace manufacturing, ensuring the performance, reliability, and longevity of equipment operating in demanding environments. Here’s a breakdown of its importance:
Corrosion Protection:
- Harsh Environments: Military and aerospace equipment often face extreme conditions: salt spray, humidity, temperature extremes, chemical exposure, and more. Corrosion can severely degrade materials, leading to failure. MIL-STD-171 specifies finishes that provide robust corrosion resistance, protecting critical components.
- Material Degradation: Without proper finishing, metals can corrode, weakening structures, causing malfunctions, and ultimately leading to equipment failure. MIL-STD-171 helps prevent this by dictating appropriate protective measures.
Enhanced Durability And Wear Resistance:
- Mechanical Stress: Components in aircraft, vehicles, and weapons systems experience significant mechanical stress, including abrasion, erosion, and impact. MIL-STD-171 addresses this by specifying finishes that enhance wear resistance, extending the lifespan of parts.
- Friction Reduction: Certain finishes can reduce friction between moving parts, improving performance and efficiency. This is especially important in aerospace applications where minimizing friction is critical.
Improved Performance And Functionality:
- Specific Properties: MIL-STD-171 allows for the selection of finishes that impart specific properties, such as electrical conductivity, lubricity, or reflectivity. This is crucial for components with specialized functional requirements.
- Surface Modification: Finishing processes can modify the surface of a metal to improve its performance in specific applications. For example, anodizing aluminum increases its hardness and wear resistance.
Standardization And Interoperability:
- Consistent Quality: MIL-STD-171 establishes standardized finishing processes across the military and aerospace industries. This ensures consistent quality and performance of components, regardless of the supplier.
- Interchangeability: Standardization facilitates the interchangeability of parts, simplifying maintenance and repair. This is essential for logistics and operational readiness.
- Supply Chain Management: The standard streamlines the supply chain by providing clear specifications for finishing processes, making it easier for manufacturers to produce compliant parts.
Reliability And Safety:
- Mission Critical Systems: Military and aerospace systems are often mission-critical, meaning their failure can have serious consequences. MIL-STD-171 helps ensure the reliability of these systems by specifying finishes that protect against degradation and enhance performance.
- Safety: The reliability of components is directly related to safety. By preventing corrosion, wear, and other forms of degradation, MIL-STD-171 contributes to the safety of personnel and equipment.
What Materials Are Covered Under MIL-STD-171?
MIL-STD-171 is a comprehensive standard that covers a wide range of materials used in military and aerospace applications. While it primarily focuses on metals, it also includes guidance for wood surfaces. Here’s a breakdown of the materials typically addressed under MIL-STD-171:
Metals:
- Ferrous Metals:
- Steel (including various alloys like carbon steel, alloy steel, stainless steel)
- Cast iron
- Non-Ferrous Metals:
- Aluminum and aluminum alloys
- Magnesium and magnesium alloys
- Copper and copper alloys
- Titanium and titanium alloys
- Zinc
- Cadmium
- Nickel
- Chromium
- Tin
- Terneplate (steel coated with lead-tin alloy)
Other Materials:
- Wood: While less common than metals, MIL-STD-171 also provides guidance for preservative treatments for wood used in certain military applications.
Important Considerations:
- Specific Alloys: Within each metal category, there are numerous specific alloys with varying properties. MIL-STD-171 often references other specifications and standards that provide more detailed information on specific alloys and their suitability for different applications.
- Compatibility: MIL-STD-171 also addresses the compatibility of dissimilar metals in contact with each other. This is important to prevent galvanic corrosion, which can occur when different metals are coupled in the presence of an electrolyte.
- Surface Condition: The condition of the base metal (e.g., surface roughness, presence of oxides or other contaminants) can significantly affect the performance of the finish. MIL-STD-171 includes requirements for surface preparation before applying any finish.
Surface Preparation Methods In MIL-STD-171
Surface preparation is absolutely critical for the success of any finishing process, and MIL-STD-171 recognizes this by dedicating significant attention to it. Proper surface preparation ensures that the chosen finish adheres correctly, provides the required protection, and performs as intended. Here’s a look at the common surface preparation methods covered in MIL-STD-171:
Cleaning:
- Degreasing: Removal of oils, grease, and other organic contaminants. This can be done using solvents, alkaline cleaners, or emulsion cleaners.
- De-scaling: Removal of rust, scale, and other corrosion products. This can involve mechanical methods like wire brushing or blasting, or chemical methods like acid pickling.
- Etching: Controlled removal of a thin layer of metal to improve adhesion of subsequent coatings. This is often done using acids or alkaline solutions.
Mechanical Cleaning:
- Abrasive Blasting: Using media like sand, glass beads, or steel grit propelled by compressed air to remove contaminants and create a specific surface profile. Different media types and blast pressures are used for various applications.
- Wire Brushing: Manual or powered wire brushes to remove loose particles, rust, and scale.
- Grinding and Machining: Using grinding wheels or cutting tools to remove surface imperfections and achieve the desired dimensions and surface finish.
Chemical Treatments:
- Phosphating: Applying a phosphate coating to steel to improve corrosion resistance and provide a good base for paint.
- Chromate Conversion Coating: Applying a chromate coating to aluminum and other metals to enhance corrosion resistance.
- Anodizing: An electrochemical process that forms a thick, protective oxide layer on aluminum and titanium.
Other Methods:
- Vapor Degreasing: Using heated solvents to create vapors that condense on the part, dissolving and removing contaminants.
- Ultrasonic Cleaning: Using high-frequency sound waves in a cleaning solution to remove contaminants from intricate parts.
Key Considerations:
- Material Compatibility: The chosen surface preparation method must be compatible with the base metal and the intended finish.
- Surface Condition: The initial condition of the surface (e.g., presence of rust, scale, or previous coatings) will influence the choice of preparation method.
- Cleanliness: Achieving a clean surface is paramount for proper adhesion and performance of the finish.
- Surface Roughness: Some finishing processes require a specific surface roughness to ensure proper adhesion. Abrasive blasting can be used to achieve this.
- Environmental Impact: Some cleaning and treatment methods may have environmental implications, and MIL-STD-171 may specify requirements for waste disposal and pollution control.
Types Of Coatings And Finishes In MIL-STD-171
MIL-STD-171 covers a wide range of coatings and finishes to protect and enhance the properties of metal surfaces in military and aerospace applications. Here are some of the key types:
Metallic Coatings:
- Electroplating: This involves depositing a thin layer of metal onto a substrate using an electric current. Common metals used for electroplating include:
- Cadmium: Offers excellent corrosion resistance, especially in marine environments. However, it has environmental concerns and is being replaced in some applications.
- Zinc: Provides good corrosion resistance and is often used as a sacrificial coating, meaning it corrodes preferentially to protect the base metal.
- Nickel: Offers good corrosion and wear resistance, and can be used as an undercoat for other finishes.
- Chromium: Provides excellent hardness, wear resistance, and corrosion resistance. It’s often used for decorative purposes as well.
- Tin: Offers good corrosion resistance and is often used for soldering and preventing galling.
- Copper: Used for electrical conductivity and as an undercoat for other finishes.
- Electroless Plating: This involves depositing a metal layer without the use of an electric current. It offers uniform coating thickness, even on complex shapes. Nickel is a common metal used in electroless plating.
- Hot-Dip Coatings: This involves immersing a part in a molten metal bath to create a thick coating. Zinc (galvanizing) is a common example.
Conversion Coatings:
- Phosphate Coatings: These are chemical treatments that convert the surface of steel into a layer of insoluble metal phosphates. They improve corrosion resistance and provide a good base for paint.
- Chromate Conversion Coatings: These are chemical treatments that form a protective chromate layer on aluminum, magnesium, and other metals. They enhance corrosion resistance and can be used as a base for paint.
Anodizing:
- Anodizing: This is an electrochemical process that forms a thick, protective oxide layer on aluminum and titanium. It increases hardness, wear resistance, and corrosion resistance. Different types of anodizing are available, including:
- Sulfuric Acid Anodizing (Type II): Produces a relatively thin, clear coating. It can be dyed to achieve various colors.
- Hard Anodizing (Type III): Produces a thicker, harder coating with superior wear resistance.
Paint Coatings:
- Organic Coatings: These include a wide variety of paints, enamels, and lacquers used for protection, decoration, and camouflage. Different paint types are specified for various environments and applications, including:
- Epoxy Paints: Offer excellent corrosion resistance and adhesion.
- Polyurethane Paints: Provide good weatherability and abrasion resistance.
- Chemical Agent Resistant Coatings (CARC): Specialized paints designed to resist chemical warfare agents.
Other Finishes:
- Dry Film Lubricants: These are solid lubricants, such as molybdenum disulfide or graphite, that are applied to surfaces to reduce friction and wear.
- Passivation: This is a chemical treatment used to enhance the corrosion resistance of stainless steel by removing free iron from the surface.
Testing And Quality Control Requirements For MIL-STD-171 Compliance
MIL-STD-171 isn’t just about specifying finishes; it also outlines rigorous testing and quality control requirements to ensure those finishes meet the necessary standards for military and aerospace applications. Here’s a breakdown:
Testing Methods:
MIL-STD-171 outlines various testing methods to evaluate the properties and performance of finishes. These include:
- Corrosion Testing:
- Salt Spray Testing: Exposing coated parts to a salt spray environment to assess their resistance to corrosion.
- Humidity Testing: Evaluating the resistance of finishes to humid environments.
- Cyclic Corrosion Testing: Simulating real-world corrosion conditions by cycling between different environments (e.g., salt spray, humidity, temperature).
- Adhesion Testing:
- Tape Test: Applying adhesive tape to the coated surface and then pulling it off to assess the adhesion of the finish.
- Scratch Test: Using a stylus to scratch the surface and evaluate the resistance of the finish to scratching.
- Thickness Measurement:
- Magnetic Thickness Gauges: Measuring the thickness of non-magnetic coatings on magnetic substrates.
- Eddy Current Thickness Gauges: Measuring the thickness of non-conductive coatings on conductive substrates.
- Microscopy: Examining cross-sections of coated parts to measure coating thickness.
- Appearance Inspection:
- Visual Inspection: Checking for defects like blisters, cracks, or discoloration.
- Color Measurement: Using colorimeters to measure the color and gloss of the finish.
- Other Tests:
- Hardness Testing: Measuring the hardness of the finish using methods like Rockwell or Vickers hardness testing.
- Wear Resistance Testing: Evaluating the resistance of the finish to abrasion and wear.
- Chemical Resistance Testing: Assessing the resistance of the finish to specific chemicals.
Quality Control Requirements:
MIL-STD-171 emphasizes quality control throughout the finishing process, from surface preparation to final inspection. This includes:
- Process Control: Monitoring and controlling the various parameters of the finishing process (e.g., temperature, time, concentration of chemicals) to ensure consistent quality.
- Inspection: Regular inspection of parts at various stages of the finishing process to identify any defects or deviations from the requirements.
- Documentation: Maintaining records of the finishing process, including surface preparation, coating application, and testing results.
- Sampling: Using statistical sampling methods to inspect a representative number of parts from a batch to ensure overall quality.
Compliance And Certification:
- Conformance: Manufacturers and suppliers must demonstrate that their finishing processes and products comply with the requirements of MIL-STD-171.
- Certification: In some cases, organizations may need to obtain certifications to demonstrate their compliance with MIL-STD-171.
Common Applications Of MIL-STD-171 In Defense And Industrial Sectors
MIL-STD-171, the military standard for finishing processes, is extensively used in various defense and industrial sectors due to its rigorous guidelines for treatment and performance. This standard outlines comprehensive finishing requirements, ensuring durability and effectiveness in high-stake environments.

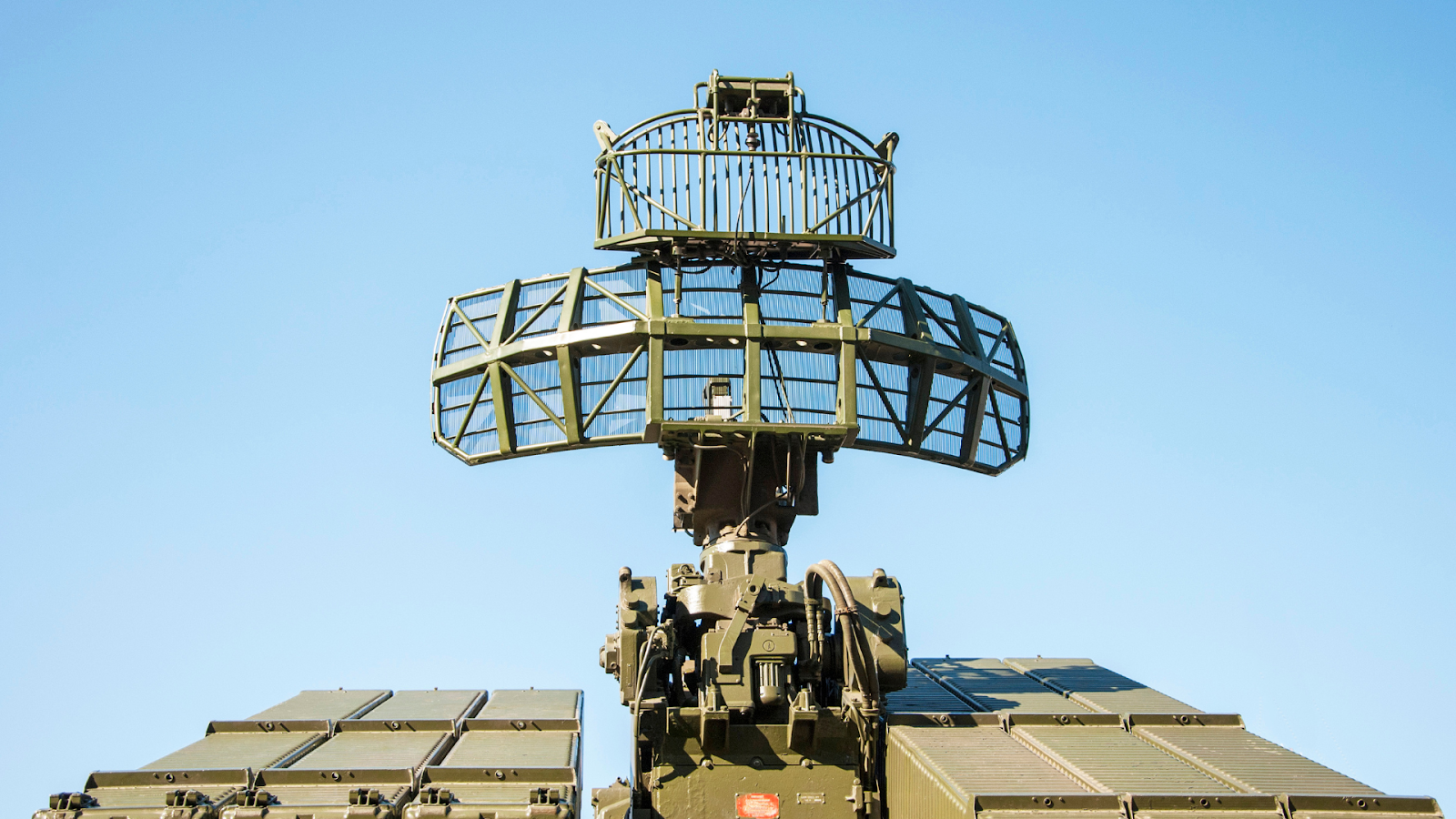

Defense Sector
In the defense sector, MIL-STD-171 is crucial for preparing, coating, and finishing components used in military hardware. This includes a broad range of equipment such as aircraft, vehicles, and weapon systems, where surface finishing is vital to maintain operational readiness and longevity under harsh conditions. The standard ensures:
- Corrosion Resistance: MIL-STD-171 mandates specific corrosion-resistant coatings to safeguard metallic components against environmental factors and chemical exposure, preserving their structural integrity.
- Surface Durability: Components are subjected to treatment processes that enhance endurance and resistance to wear and tear, which are vital for defense applications.
- Sealing and Protection: The standard dictates sealing techniques necessary for preventing fluid ingress ensuring the protection of sensitive electronics and systems within military machinery.
Industrial Sector
MIL-STD-171 applies to crucial infrastructure and components that demand precision and resilience in industrial sectors such as aviation and space exploration. Key applications include:
- Enhanced Coating Solutions: This standard guides specific coating techniques that improve parts’ resistance to extreme temperatures and pressures, places where precision aerospace engineering is critical.
- Efficiency in Maintenance: Adhering to MIL-STD-171 supports decreased maintenance needs and potential downtimes by ensuring components withstand operational stresses, leading to higher safety and reliability.
- Sustainability and Compliance: Compliance with MIL-STD-171 enables companies to meet federal and international regulations, enhancing their market credibility and environmental responsibility.
Additional Read:
Frequently Asked Questions
Why is MIL-STD-171 important?
MIL-STD-171 is a critical military standard that outlines the requirements for finishing and coating processes on military equipment. This standard ensures that materials meet specific criteria for durability, resistance to environmental factors, and compatibility with other components. By adhering to MIL-STD-171, products achieve the quality and consistency necessary for the demanding conditions of military applications.
What is covered by MIL-STD-171?
MIL-STD-171 encompasses a comprehensive range of finishing and coating specifications, including painting, plating, and other protective treatments. These specifications address finishing preparation, application, and testing to guarantee that materials possess the required strength, stability, and protection against corrosion, wear, and adverse environmental impacts.
Can MIL-STD-171 be used for commercial applications?
While MIL-STD-171 is designed for military applications, the rigorous standards can also be utilized in commercial sectors. Industries that demand high-quality surface finishing and protection, such as aerospace and defense, often adopt these standards to ensure durability and performance in challenging environments.
Does MIL-STD-171 apply to all military equipment?
Not all military equipment is subject to MIL-STD-171, as applicability depends on specific contract requirements and the nature of the resources used. However, many components critical to the function and safety of military equipment are often coated in accordance with MIL-STD-171 to meet essential performance standards.
Who uses MIL-STD-171?
MIL-STD-171 is primarily employed by defense contractors, military departments, and companies involved in the aerospace and defense industries. It provides these entities with a unified framework for surface finishing, ensuring reliable and interoperable products.
How does MIL-STD-171 relate to corrosion prevention?
MIL-STD-171 plays a vital role in corrosion prevention by prescribing finishes and coatings to protect surfaces against chemical and environmental degradation. This standard outlines the technical requirements necessary to enhance product life and maintain functionality, emphasizing the importance of corrosion-resistant materials in mission-critical scenarios.
