How Non-Destructive Testing Ensures Product Integrity And Safety

Key Takeaways:

• Nondestructive testing (NDT) is a critical tool in ensuring the safety and integrity of aerospace components. It allows for the identification of potential flaws without damaging the materials.
• Various NDT techniques, such as ultrasonic testing, radiographic testing, and eddy current testing, are instrumental in maintaining product quality and detecting internal and surface defects.
• Valence Surface Technologies leverages advanced NDT methods within a comprehensive quality assurance framework, supporting its role as a trusted partner in aerospace surface finishing.



How can product safety and reliability be ensured without causing any damage during testing? In industries where precision and safety are essential, non-destructive testing (NDT) examines materials and products without altering or compromising them thoroughly. Much like a medical scan provides insights into the body without invasive procedures, NDT allows for in-depth structural integrity analysis, helping identify potential issues before they become problems.

At Valence Surface Technologies, we specialize in quality assurance and have extensive experience in non-destructive testing techniques. Our expertise across various industries has allowed us to provide reliable testing methods that maintain product integrity while ensuring compliance with safety standards. This depth of knowledge positions us as a trusted source for understanding and implementing NDT solutions.

In this article, we will explore non-destructive testing, its key benefits, and how it helps ensure product integrity and safety across different industries.



What Is Non-Destructive Testing And Why Does It Matter?

Non-Destructive Testing (NDT), as its name implies, encompasses a wide array of analysis techniques used in the science and industry to evaluate the properties of a material, component, or system without causing any damage. Unlike destructive testing, where samples are stressed to the point of failure to understand their performance under various conditions, NDT allows for inspecting and assessing product integrity and safety while preserving the material’s future usefulness. This feature is crucial in industries where the safety and functionality of components cannot be compromised, such as aerospace, defense, and space exploration.

The significance of NDT lies in its ability to maintain the structural integrity of components during testing and its capacity to provide valuable data that can prevent future failures. Thus, NDT ensures the safety and reliability of critical components in high-stakes environments.

Integrating NDT into the manufacturing and maintenance processes is essential for organizations in the aerospace, defense, and space sectors, where the cost of a failure can be catastrophic. It is a proactive approach to detecting defects, irregularities, and weaknesses before they become serious problems.

Valence Surface Technologies understands the critical importance of product integrity and safety in the aerospace, defense, and space industries. As the world’s largest independent aerospace product finishing company, we offer unparalleled non-destructive testing (NDT) services that ensure your components meet the highest standards of quality and reliability.

Contact us today to learn how we can support your NDT needs and become your trusted partner in aerospace surface finishing.



How NDT Works: A Closer Look At Common Techniques

Here’s a closer look at some common NDT techniques and how they work:



Visual Inspection

The most fundamental of all NDT methods, visual inspection, is exactly as it sounds: using the naked eye or assistive devices like magnifying glasses or borescopes to examine the surface of a component. Despite its simplicity, visual inspection is a powerful tool for identifying surface flaws such as cracks, corrosion, or accumulation of deposits.



Ultrasonic Testing (UT)

Ultrasonic Testing utilizes high-frequency sound waves projected into a material. By measuring the sound waves reflected back or transmitted through the material, technicians can detect internal flaws or characterize material properties. This technique is especially valuable for identifying defects deep within the structure of aerospace components that are inaccessible by other means.



Radiographic Testing (RT)

Radiographic Testing involves using X-rays or gamma rays to create images of a component’s internal structure. This method is particularly effective for identifying irregularities such as cracks, voids, or inclusions within complex assemblies and materials. Due to its ability to penetrate different materials, RT provides a comprehensive view of a component’s integrity.



Magnetic Particle Testing (MPT)

Magnetic Particle Testing is employed to detect surface and slightly subsurface discontinuities in ferromagnetic materials. By applying a magnetic field to the component and then sprinkling it with iron particles, any flaws will disturb the magnetic field and attract the particles, creating a visible indication of the defect. MPT is ideal for quick and localized inspection of critical areas.



Eddy Current Testing (ECT)

Eddy Current Testing leverages electromagnetic induction to detect surface and near-surface flaws in conductive materials. A coil carrying an electric current is placed near the test material, inducing circulating electrical currents (eddy currents). Any defects affect the flow of these eddy currents, which can be measured and interpreted to identify the flaw’s location and size.

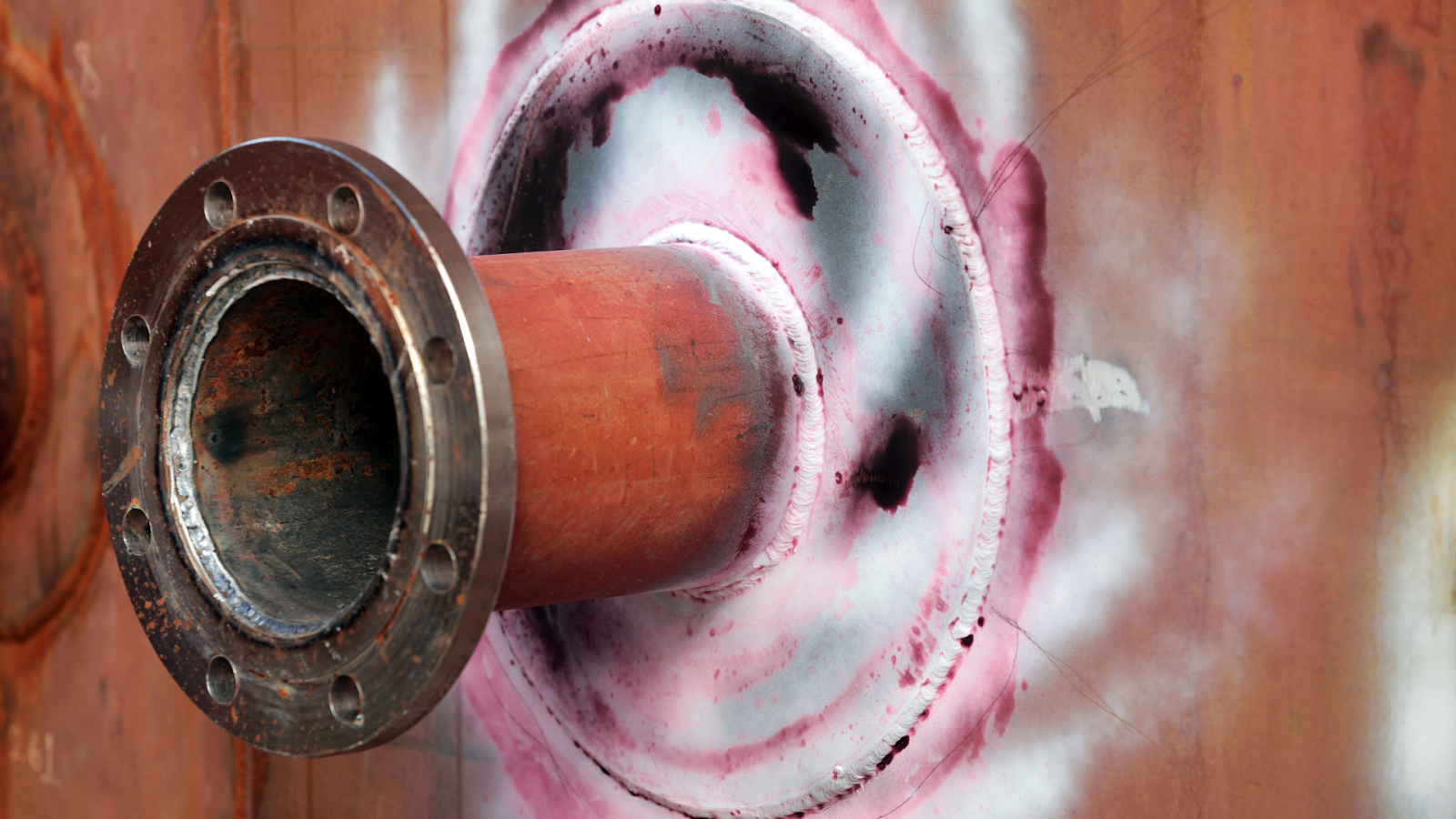

Penetrant Testing (PT)

Penetrant Testing reveals surface-breaking defects by applying a liquid dye to the component’s surface. The dye enters any flaws by capillary action. After removing excess dye, a developer is applied, drawing the dye out of the flaws to create a visible indication. PT is highly sensitive to small surface discontinuities.





The Benefits Of NDT: Why It’s Essential For Product Quality

Non-Destructive Testing (NDT) plays a pivotal role in ensuring product quality, safety, and reliability without compromising their integrity. In industries where precision is paramount, such as aerospace, defense, and space, adopting NDT methods is not just beneficial but essential. Here are several compelling reasons why NDT is critical for product quality assurance:



Ensures Safety and Reliability

One of NDT’s paramount benefits is its ability to detect flaws and irregularities that could lead to product failure, potentially endangering lives and property. By identifying defects early, NDT helps ensure the safety and reliability of critical components, thereby protecting both the end-users and the manufacturers from the catastrophic consequences of product failures.



Maintains Product Integrity

Unlike destructive testing methods, NDT examines materials and components without altering or damaging them. This is particularly crucial in the aerospace industry, where the integrity of each component can be the difference between success and failure. By preserving the product’s integrity, NDT allows for the continuous, real-world use of the component after testing, ensuring that only products meeting the highest quality standards reach the market.



Supports Preventive Maintenance

NDT techniques are invaluable for preventive maintenance, allowing for detecting problems before they lead to significant damage or failure. This proactive approach to maintenance extends the components’ lifespan and minimizes downtime and associated costs, thereby enhancing operational efficiency and productivity.



Offers Comprehensive Insights

With the advancement in NDT technologies, practitioners can now gain a more detailed understanding of product quality and material characteristics. Methods such as ultrasonic testing, radiographic testing, and magnetic particle testing provide comprehensive insights into a component’s internal and surface conditions, facilitating informed decision-making and quality control processes.



Reduces Costs and Enhances Competitive Advantage

By detecting defects early in the production process, NDT helps avoid the costs associated with material waste, rework and recalls. Furthermore, the ability to assure product quality through NDT enhances a company’s reputation and can provide a competitive advantage in the market. Companies implementing rigorous NDT programs are more likely to be perceived as reliable and committed to excellence.



NDT In Different Industries: Applications And Challenges

Non-destructive testing (NDT) plays a pivotal role in ensuring the integrity and safety of products across various industries, ranging from aerospace to automotive, from civil engineering to the energy sector. The versatility of NDT techniques allows for their application in diverse operations, each with unique challenges.



Aerospace

In the aerospace sector, the highest levels of precision and safety are non-negotiable. NDT is crucial for examining critical components under extreme stress and environmental conditions. Techniques such as ultrasonic testing and radiography are commonly employed to detect flaws in the aircraft’s structure and engine components without causing damage.

The challenge here lies in the complex geometries and the vast range of materials used, including composites and high-performance alloys. Achieving thorough inspection coverage and sensitivity is paramount, necessitating advanced equipment and highly skilled technicians.



Automotive

The automotive industry significantly benefits from NDT to ensure safe and reliable vehicles. From castings and welds in the chassis to the integrity of airbag components, NDT methods such as magnetic particle inspection and eddy current testing are utilized.

The primary challenge within the automotive sector is the high-volume production environment. NDT processes must be fast and cost-effective without impeding manufacturing flow, requiring the integration of automated and real-time inspection systems.



Civil Engineering

In civil engineering, NDT contributes to the safety and durability of infrastructure such as bridges, tunnels, and buildings. Techniques like ground-penetrating radar and infrared thermography help assess the condition of structures and identify potential issues like cracks, corrosion, or voids in concrete and metal components.

The main challenges are the scale of structures under examination and the accessibility of certain areas. Effective NDT in civil engineering often entails portable equipment and innovative methods to reach and evaluate hard-to-access locations.



Energy

The energy sector, encompassing oil & gas, nuclear, and renewable energy, relies on NDT to maintain and inspect its facilities and equipment. Corrosion under insulation (CUI) in pipelines, for instance, is a significant concern in the oil & gas industry, where techniques such as ultrasonic testing play a critical role in early detection.

In the nuclear sector, radiographic testing is essential for ensuring the integrity of reactor components. The challenges here revolve around the harsh operating conditions, the critical nature of the components, and strict regulatory requirements. NDT methods must be highly accurate, and operators must be exceptionally trained to navigate the complex safety and compliance landscape.



NDT Standards And Regulations: Ensuring Compliance

Non-destructive testing (NDT) is governed by an array of strict standards and regulations designed to ensure the reliability, safety, and integrity of aerospace components. At Valence Surface Technologies, compliance with these standards is not just a regulatory requirement; it’s a cornerstone of our commitment to being the most trusted partner in aerospace surface finishing.



Industry Standards for NDT

The aerospace industry adheres to rigorous NDT standards, which dictate the methodologies, techniques, and qualifications required to accurately evaluate the condition of components without causing damage. The most notable among these are:

• ASTM E1316: Standard terminology for non-destructive examinations, establishing a common language that enhances understanding and application of NDT processes.

• ASNT SNT-TC-1A: Recommended practice for personnel qualification and certification, ensuring technicians are proficient in NDT techniques.

• NAS 410: Certification and qualification standard for NDT personnel, much like ASNT SNT-TC-1A, but specifically tailored to the aerospace sector.

• ISO 9712: International standard for the qualification and certification of NDT personnel, promoting a global benchmark for technician competence.

These standards are complemented by specific regulations from aerospace governing bodies, such as the Federal Aviation Administration (FAA) in the United States, the European Union Aviation Safety Agency (EASA) in Europe, and other national and international regulatory bodies.



Choosing The Right NDT Method: Factors To Consider

With a variety of NDT methods available, selecting the most appropriate one is critical for achieving reliable results without compromising the physical properties of the component being tested. Here are several factors to consider when deciding on the right NDT method for aerospace surface finishing:



Material Composition and Structure

Different materials react differently to various NDT methods. The choice of technique heavily depends on the material’s composition and structure. For instance, metals may require different testing methods than composites or polymers. Understanding the specific properties of the material, such as conductivity or permeability, can help select the most effective NDT technique.



Component Geometry

The shape and size of the component significantly influence the choice of NDT method. Complex geometries may be challenging to inspect with certain techniques. For example, components with irregular shapes or hard-to-reach areas might benefit from ultrasonic testing (UT) or radiographic testing (RT), which can provide detailed images of internal structures without requiring direct surface contact.



Defect Types and Locations

Identifying the types of defects and their potential locations within a component is crucial for selecting an NDT method. Surface defects can be easily detected with visual inspection or liquid penetrant testing, while subsurface defects require more sophisticated methods like ultrasonic testing or eddy current testing. Understanding the nature of expected defects ensures that the chosen NDT method can effectively detect and characterize them.



Sensitivity and Resolution

The sensitivity and resolution required for the inspection also dictate the choice of NDT method. High-resolution techniques are necessary to detect small defects that could lead to failure. Each NDT method has its sensitivity limits and resolution capabilities, which must align with the inspection requirements to ensure no defects are missed.



Environmental and Safety Considerations

Environmental and safety factors play a significant role in selecting an NDT method. Some techniques, like radiographic testing, involve radiation that requires special safety precautions and trained personnel. Other methods might be better suited for field applications where portability and minimal environmental impact are desired.



Cost and Time Efficiency

Finally, cost and time efficiency are important considerations, especially in high-volume production environments. Some NDT methods are more time-consuming and require higher levels of expertise, influencing the inspection process’s overall cost and turnaround time. Balancing the accuracy and thoroughness of the inspection with cost and time constraints is essential for maintaining product integrity while ensuring efficiency.



NDT Equipment And Technology: Advances And Trends

Advancements in NDT equipment and emerging technology trends enhance testing efficiency and accuracy and contribute significantly to the proactive identification of potential faults or weaknesses in aerospace products. Here, we explore the latest advances and trends in NDT equipment and technology that set new standards in aerospace product finishing.



Latest Advancements in NDT Equipment

• Digital Radiography (DR): Unlike traditional X-ray inspection methods, digital radiography offers superior image quality and immediate results. This technology provides a detailed view of the interior structure of aerospace components, allowing for the precise identification of cracks, voids, or other defects with minimal radiation exposure.

• Phased Array Ultrasonic Testing (PAUT): PAUT has emerged as a powerful ultrasonic testing technique that offers detailed images of materials’ internal structures. Its capability to adjust the focal point and angle of the ultrasonic beam in real-time makes it highly effective in detecting flaws in complex geometries characteristic of aerospace components.

• Eddy Current Array (ECA): Using traditional eddy current testing, ECA technology uses multiple coil sets to scan a wider surface area in a single pass. This enhancement significantly reduces inspection times and improves the detection of surface and sub-surface flaws in conductive materials.

• Thermographic Inspection Techniques: Advances in infrared cameras and thermal imaging software have bolstered the effectiveness of thermographic inspections. These techniques are invaluable for identifying variations in thermal conductivity caused by defects, enhancing the preventative maintenance of aerospace products.



Emerging Trends in NDT Technology

• Integration of Artificial Intelligence (AI): The integration of AI and machine learning algorithms into NDT equipment is revolutionizing inspections. AI enhances the ability to interpret vast amounts of data, leading to faster defect identification and predictive maintenance capabilities.

• Robotics and Automated NDT Systems: Automating NDT processes using robotic systems offers unparalleled precision and repeatability. These systems can navigate complex surfaces and confined spaces, ensuring comprehensive inspections while reducing human error and exposure to hazardous conditions.

• 3D Computed Tomography (CT): 3D CT scanning technology offers a non-invasive means of examining a component’s internal and external features in high resolution. This advancement is particularly useful for analyzing the intricate parts typical in the aerospace industry, providing a holistic view of the component’s condition.

• Remote and Real-Time Monitoring: With the advent of Internet of Things (IoT) devices, remote and real-time monitoring of aircraft components has become possible. This trend towards continuous monitoring ensures that any deterioration can be detected and addressed promptly, drastically reducing the risk of unexpected failures.



Best Practices For Integrating NDT In Production

Integrating Non-Destructive Testing (NDT) into the production cycle is crucial for ensuring product integrity and safety, especially in industries where failure can have catastrophic consequences, such as aerospace and defense. Here are some key strategies for integrating NDT effectively:



Early Integration in the Design Phase

Incorporating NDT considerations early in the product design phase is fundamental. This proactive approach aids in designing products that are not only optimized for performance but also easy inspection, ensuring thorough and scalable NDT processes that align with production timelines and cost-effectiveness.



Selecting the Appropriate NDT Method

With many NDT methods available, selecting the most appropriate method based on the material properties, product design, and potential failure modes is critical. Techniques such as ultrasonic, magnetic particle, and radiographic testing each offer unique benefits and limitations. A thorough evaluation of these methods ensures the selection of the most effective testing technique tailored to specific product requirements.



Qualified Personnel and Training

The accuracy and reliability of NDT results significantly depend on the competency of the personnel conducting the tests. Investing in comprehensive training and certification programs for NDT technicians is essential to maintaining high standards of product integrity and safety. Continuous education and exposure to the latest NDT technologies and trends are crucial for staying ahead in the competitive aerospace surface finishing industry.



Integration with Quality Management Systems

NDT processes should seamlessly integrate with existing quality management systems (QMS). This integration ensures that NDT operations fully align with the organization’s broader quality objectives. Regular audits, reviews, and updates of the NDT processes within the QMS framework help maintain NDT’s effectiveness and relevance in the production cycle.



Continuous Improvement and Innovation

The field of NDT is continuously evolving, with advancements in technology offering new opportunities for enhancing testing efficiency and accuracy. Embracing innovation and investing in state-of-the-art NDT technologies is imperative for staying at the forefront of product integrity and safety assurance. A culture of continuous improvement, driven by feedback loops from NDT results, enables the identification and implementation of process optimizations.

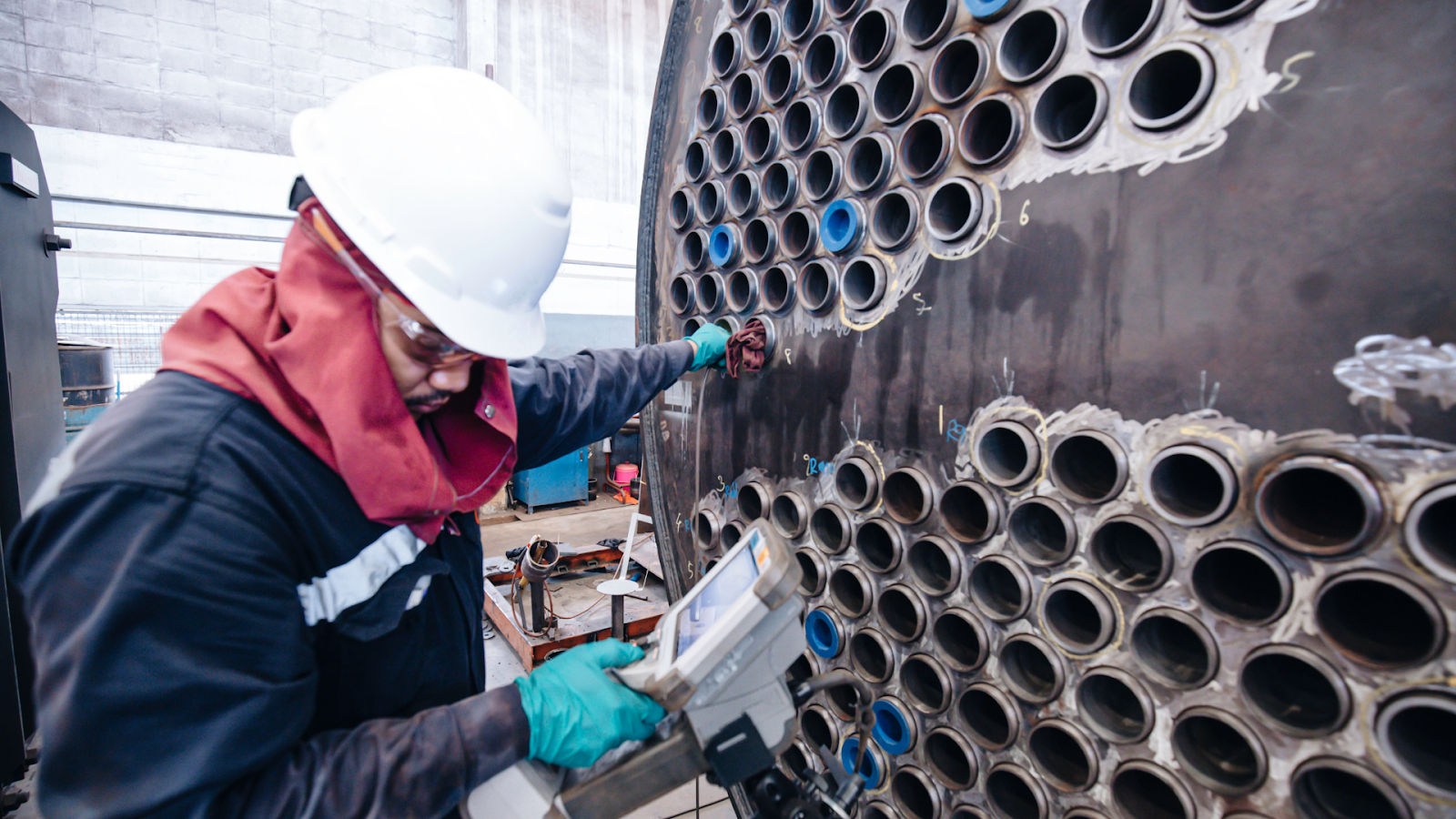

Collaboration with NDT Experts

Building strong partnerships with NDT experts and service providers, such as Valence Surface Technologies, can provide access to specialized knowledge, resources, and cutting-edge NDT solutions. Leveraging the expertise of the world’s largest independent aerospace product finishing company ensures that NDT processes are aligned with industry standards and integrated with an overarching commitment to excellence and safety in aerospace manufacturing.





Final Thoughts

Non-destructive testing (NDT) is an indispensable methodology for maintaining the highest standards of safety, reliability, and integrity in the aerospace industry. It is a pivotal process that identifies potential issues without causing damage to the components, ensuring that every part meets the stringent quality standards required for aviation, defense, and space operations.

Valence Surface Technologies stands at the forefront of applying advanced NDT techniques, reinforcing our commitment to be the most trusted partner in aerospace surface finishing. As the world’s largest independent aerospace product finishing company, Valence provides an unmatched, integrated solution that encompasses every aspect of surface finishing, serving as a crucial ally for companies striving for top-of-the-line surface finishing services.

Our expertise in NDT, combined with our comprehensive suite of services, underscores our dedication to supporting the safety and success of our clients’ projects. Trust Valence to not only meet but exceed industry standards, ensuring your projects soar to new heights of excellence and safety.



Additional Read:

• The Role Of Advanced Surface Solutions In Modern Aircraft Manufacturing
• Essential Guide To Metal Finishing: Techniques, Benefits, And Industry Applications
• The Benefits Of Plated Steel For Industrial Applications



Frequently Asked Questions

Can NDT be applied to all materials and industries?

Nondestructive testing (NDT) is a highly versatile examination method that can be applied to a wide range of materials, including metals, plastics, ceramics, and composites. Its adaptive nature makes it applicable in numerous industries, such as aerospace, automotive, construction, and energy. However, the specific techniques used may vary depending on the material properties and industry requirements.



Why is NDT important for safety?

NDT is critical in ensuring the safety and reliability of components and structures without compromising their usability. By detecting potential failures and quality issues early, NDT helps prevent accidents, safeguarding human lives and the environment. It is particularly vital in industries where failure can have catastrophic consequences, such as aviation, defense, and space.



What are the cost benefits of using NDT?

Employing NDT techniques offers significant cost benefits by enabling early detection of flaws, which reduces the likelihood of catastrophic failures and costly downtime. By extending the service life of components and minimizing the need for replacements, NDT can lead to substantial savings over the product’s lifecycle. Further, as a non-intrusive method, it allows for ongoing operations without disassembly or shutdown, optimizing production efficiency.



Can NDT detect internal defects?

Yes, NDT is designed to detect surface and internal defects within the materials. Techniques such as ultrasonic testing, radiography, and computed tomography are highly effective in identifying cracks, porosity, inclusions, and other flaws embedded beneath the surface. This capability is essential for assessing the integrity of critical components in the aerospace, automotive, and nuclear industries.



How often should NDT be performed on equipment?

The frequency of NDT inspections depends on several factors, including the material, the component’s operational environment, and the industry standards. Regularly scheduled assessments are common practice, with intervals often determined by regulatory requirements or manufacturer recommendations. More frequent testing may be necessary for high-stress applications, such as in aerospace or defense, to ensure ongoing safety and performance.



Is NDT environmentally friendly?

NDT is generally considered an environmentally friendly approach to testing. Most NDT methods, such as ultrasonic testing, magnetic particle inspection, and thermal imaging, are noninvasive and do not generate harmful residues or emissions. However, techniques like radiography require proper safety measures to protect operators and the environment from radiation exposure. Overall, NDT contributes to sustainability by enhancing the lifecycle of materials and reducing waste.
