Anodizing is a surface finishing technique that forms a protective layer on metal surfaces, enhancing corrosion and wear resistance, electrical insulation, and aesthetic appeal. This versatile process is employed across various industries such as automotive, aerospace, medical, and electronics.
There are two main types of anodizing, Type II and Type III. Type II anodizing, a traditional and cost-effective method, generates a thin oxide layer on the metal surface, making it suitable for general-purpose applications.
On the other hand, Type III anodizing, which is also known as hard anodizing, creates a more robust and wear-resistant oxide layer. Though more expensive, it is ideal for applications demanding enhanced durability and strength.
To determine the best anodizing method for your needs, this article provides a thorough comparison of Type II and Type III anodizing. We will delve into the advantages, drawbacks, characteristics, and examples of each type, as well as explore the key distinctions between them and address common questions.
Ready to learn more about anodizing services tailored to your requirements? Contact Valence Surface Technologies today and let their experts guide you to the perfect solution.
What Is Anodizing?
Anodizing is an electrochemical conversion process that protects metal surfaces from corrosion and wear by forming an oxide layer on the metal. This technique not only enhances the durability and corrosion resistance of metal surfaces but also improves their aesthetic appeal. Additionally, it promotes better adhesion for paints, dyes, and other coatings.
During the anodizing process, the metal is submerged in an electrolyte solution, and an electrical current is passed through it. This induces oxidation and creates a protective layer on the surface. By modifying the voltage, current, and electrolyte type, the thickness and properties of this oxide layer can be customized to suit specific requirements.
Applicable to various metals such as aluminum, titanium, and zinc, anodizing is a cost-effective and efficient method for optimizing the performance and appearance of metal surfaces. This versatile process is widely used in industries like aerospace, automotive, and electronics, where it contributes to enhanced product longevity and reduced maintenance costs.
How does Anodizing Work?
Anodizing is an electrochemical method that involves immersing metal surfaces in an electrolyte solution and applying an electrical current that generates a protective oxide layer.
This process enhances the metal’s durability, corrosion resistance, and aesthetics. Commonly used on aluminum and other alloys, anodizing can also be applied to metals like steel, titanium, and magnesium.
This method is popular for its numerous advantages, including improved wear and abrasion resistance, corrosion resistance, decorative finish, and strong adhesion to paints or coatings, making it suitable for automotive and marine applications.
Anodizing is inexpensive, quick, simple, and eco-friendly because it doesn’t produce hazardous waste or use dangerous chemicals.
What Is Type II Anodizing?
Anodizing is an electrochemical technique that forms a protective layer on metal surfaces, such as aluminum. Type II anodizing, also known as conventional or sulfuric acid anodizing, is a widely used method for creating a thin, durable coating on aluminum parts.
During the Type II anodizing process, the aluminum component is submerged in a sulfuric acid electrolyte bath. An electric current is passed through the part and the acid, initiating a chemical reaction that generates a sturdy aluminum oxide coating on the part’s surface, which is harder and more resilient than the aluminum itself.
The coating’s thickness, ranging from 0.5 to 25 microns, depends on the duration of immersion in the electrolyte bath and the applied current. This thickness also influences the part’s color, with darker shades resulting from thicker coatings.
Several applications select Type II anodizing because of its dependability, affordability, and resistance to corrosion, abrasion, and wear. This makes it suitable for components that must endure harsh conditions. Furthermore, Type II anodized parts are low maintenance, as they can be effortlessly cleaned using water and a mild detergent.
Benefits of Type II Anodizing
Type II anodizing is a preferred choice for various applications, thanks to its multitude of advantages. As a cost-effective method, it delivers exceptional corrosion resistance, wear protection, and high electrical insulation, making it well-suited for electrical components. Its aesthetic appeal also renders it a popular option for decorative purposes.
By sealing the material’s surface, the anodizing process inhibits oxidation and staining, making it an excellent choice for outdoor applications that require resistance to UV radiation and other environmental elements. The ease of cleaning without specialized solutions or methods adds to its appeal.
Furthermore, Type II anodizing serves as a solid foundation for painting and dyeing, allowing for a range of colors suitable for decorative applications. This coating acts as a barrier, preventing the underlying material from reacting with other substances.
Disadvantage of Type II Anodizing
Type II anodizing may not be the ideal choice for applications demanding high corrosion or abrasion resistance, as the porous nature of the anodized coating leaves it susceptible to such damage. The presence of organic contaminants, like oils and greases, can infiltrate the pores and hasten corrosion.
Moreover, Type II anodizing’s sensitivity to UV radiation makes it susceptible to fading and discolouration in outdoor settings, which can eventually lead to the coating’s degradation. Applying a clear topcoat can counteract this issue, but it will increase the overall cost of the anodizing process.
Characteristics of Type II Anodizing
Type II anodizing is a technique that generates a thin, protective layer on a metal surface by exposing it to an electrolyte solution and applying an electric current. This process forms a corrosion-resistant and durable oxide layer with a thickness ranging from 0.7 to 25 microns, depending on the intended application.
The coating’s color varies based on the metal type and voltage of the current, with higher voltages typically producing darker shades. This method is frequently employed for aluminum and other non-ferrous metals.
Examples Of Type II Anodizing
Type II anodizing, the most prevalent anodizing method, is employed across various applications to produce a hard, durable, and corrosion-resistant surface on aluminum and other non-ferrous alloys. It is ideal for finishing parts exposed to wear, such as automotive and aircraft components or medical implants, and can be used to color parts for architectural purposes.
During the process, aluminum parts are submerged in a sulfuric acid bath and subjected to direct current, forming a thin oxide layer on the surface. This layer can be dyed for desired colors, and its thickness, which affects wear and corrosion resistance, can be controlled.
Thicker layers may necessitate specialized dyes. A matte or satin finish can be achieved using a special acid bath that creates a porous oxide layer, which is then filled with dye or sealant for the desired appearance.
What Is Type III Anodizing?
Type III anodizing, or hard anodizing, is an electrochemical technique for enhancing the natural oxide layer thickness on a metal surface, resulting in a hard, durable, and corrosion-resistant finish. In contrast to Type II anodizing, Type III employs a higher voltage in a sulfuric acid bath, yielding a more robust oxide layer.
The oxide layer produced by Type III anodizing typically ranges from 0.5-3.0 mils in thickness, offering greater durability, corrosion resistance, and protection against scratches, dents, and surface damage compared to Type II anodizing.
This process is widely utilized in industrial and commercial applications, such as aircraft components, medical implants, automotive parts, and firearm production, due to its superior corrosion and wear protection.
Benefits of Type III Anodizing
Type III anodizing, a highly durable method, is well-suited for high-performance applications due to its exceptional wear and corrosion resistance, making it perfect for heavily used parts or those exposed to harsh environments.
Offering excellent electrical insulation, Type III anodizing is ideal for electrical components, preventing current from passing through the anodized surface. Its aesthetic appeal and ability to be dyed in various colors make it a popular choice for decorative applications and part customization.
Moreover, Type III anodizing withstands environmental factors, such as UV radiation, making it an excellent option for outdoor applications that demand corrosion and environmental resistance.
Type III Anodizing Disadvantage
Type III anodizing is more expensive than Type II anodizing due to the extra processing steps involved. Achieving consistent results can be more challenging with Type III anodizing, as it demands greater precision in controlling the parameters.
Furthermore, Type III anodizing is more prone to staining and discoloration compared to Type II, as the thicker coating can trap organic contaminants like oils and greases that cause discoloration over time.
Although a clear topcoat can prevent this issue, it adds to the overall expense of the anodizing process.
Characteristics of Type III Anodizing
Type III anodizing forms a thicker protective coating on metal surfaces by exposing the material to an electrolyte solution and applying an electric current. This process produces a durable, highly corrosion-resistant oxide layer with a thickness varying from 20 to 125 microns, depending on the application.
The coating’s color relies on the metal type and the current’s voltage, with higher voltages generating darker shades. Typically, Type III anodizing is employed for aluminum and other non-ferrous metals.
Examples Of Type III Anodizing
Type III anodizing, also known as hardcoat anodizing, is a process that is used to create a thicker, harder, and more wear-resistant coating on aluminum and other metals. It is often used in industrial and military applications, where a more durable finish is needed.
Some common examples of Type III anodizing include:
• Industrial Machinery: Type III anodizing is often used to protect industrial machinery from wear and corrosion. It is often used on components such as conveyor belts, hoists, and other parts that are subject to frequent wear and tear.
• Automotive Components: Type III anodizing is also used to protect automotive components from corrosion and wear. It is often used on brake calipers, exhaust systems, and other parts that are exposed to extreme temperatures and conditions.
• Military Applications: Type III anodizing is also used in military applications, where a more durable finish is needed. It is often used on firearms, armor, and other components that need to be able to withstand harsh conditions.
• Aerospace Applications: Type III anodizing is also used in aerospace applications, where a more durable finish is needed. It is often used on components such as landing gear, control surfaces, and other parts that are subject to extreme temperatures and conditions.
• Marine Applications: Type III anodizing is also used in marine applications, where a more durable finish is needed. It is often used on propellers, hulls, and other components that are exposed to salt water and other corrosive conditions.
Type III anodizing is a versatile process that can be used to create a durable and corrosion-resistant finish on a variety of metals. It is often used in industrial, automotive, military, aerospace, and marine applications, where a more durable finish is needed.

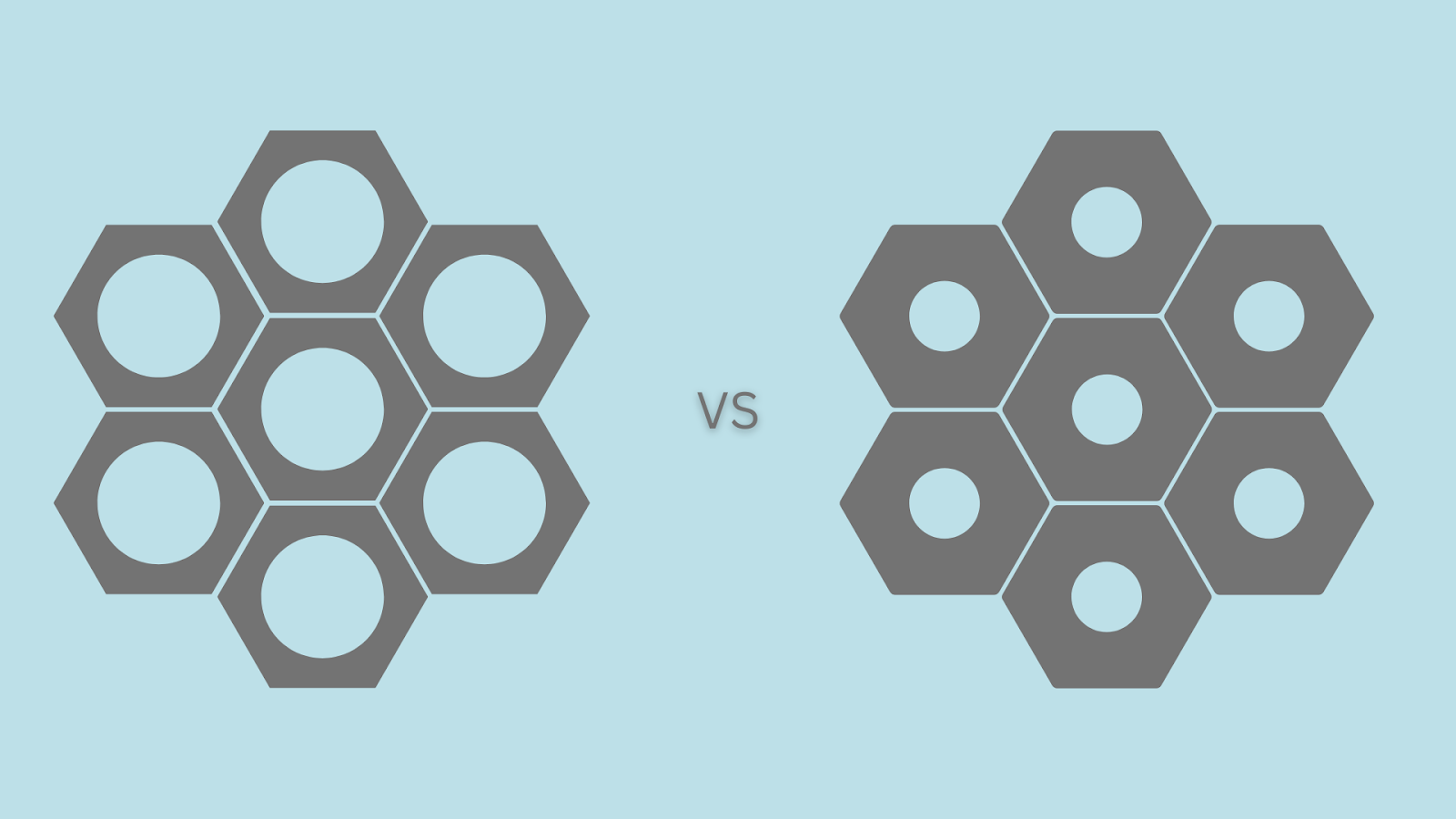

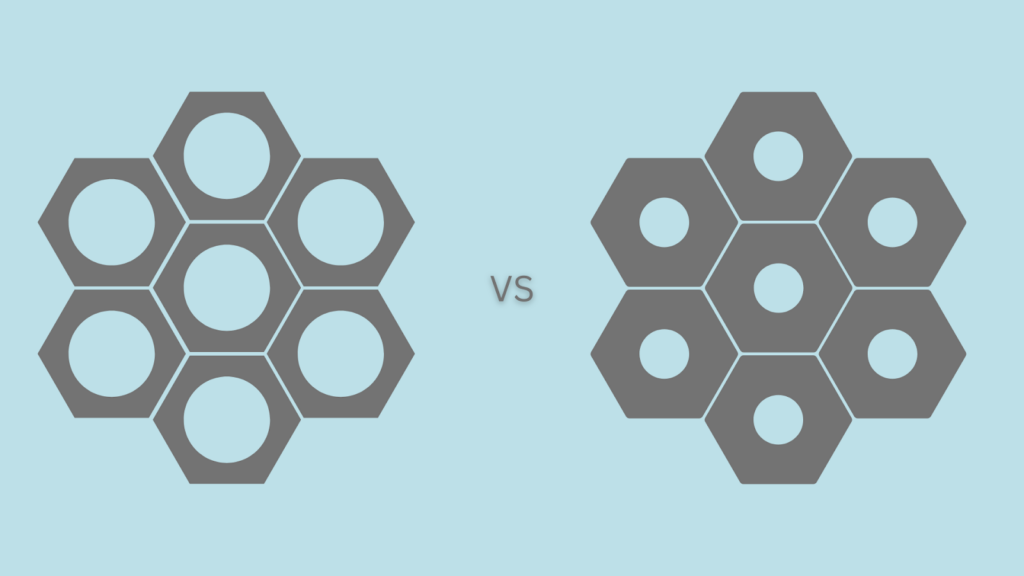

Key Difference Between Type II And Type III Anodizing
The key difference between Type II and Type III anodizing lies in the thickness of the anodized layer. Type II anodizing is a thin film anodizing process that results in a coating of 0.7-1.2 mils (18-30 microns) thick. While, Type III anodizing, also known as hardcoat anodizing, is a thicker anodizing process that results in a coating of 2.0-2.8 mils (50-70 microns) thick.
Type II anodizing is usually used for aesthetic purposes and provides a thin, durable coating that is resistant to corrosion and wear. It is also used to provide a base layer for additional coatings, such as paint or powder coating.
Type III Anodizing, on the other hand, is used for applications that require a thicker and harder coating. It provides greater wear and corrosion resistance than Type II anodizing, making it ideal for parts that are exposed to extreme environments.
Other differences between Type II and Type III anodizing include the type of acid used in the process. Type II anodizing is typically done in a sulfuric acid bath, while Type III anodizing is done in a chromic acid bath.
Additionally, Type III anodizing is more expensive than Type II anodizing due to the additional complexity of the process.
Anodizing Type ll & Type lll Alternatives
Anodizing Type II and Type III alternatives encompass various surface treatments designed to enhance metal performance and appearance. These alternatives may include processes such as powder coating, electroplating, or passivation, each catering to specific requirements, such as increased corrosion resistance, durability, or aesthetics. When choosing a suitable alternative, it is important to consider the application, desired properties, and budget constraints to achieve optimal results.
To explore the best surface treatment solution for your specific needs, get in touch with our experts by visiting our contact page.
Final Thoughts
Anodizing is a versatile and cost-effective surface treatment method offering numerous benefits. The two most prevalent types, Type II and Type III anodizing, each present unique advantages and drawbacks.
Type II anodizing serves as a budget-friendly choice for projects requiring a thin coating and matte finish, while Type III anodizing provides a more robust solution for those needing a thicker coating and glossy appearance.
The primary distinction between these anodizing types is the coating thickness and finish. The optimal anodizing type for any given application relies on the project’s specific needs. To find the best anodizing solution for your project, contact our team of experts at Valence today.
FAQs
What are the three types of anodizing?
The three types of anodizing are Type I, Type II, and Type III. Type I is a basic anodizing process that forms a thin, uniform coating on the surface of the metal. Type II is a thicker anodizing process that creates a more durable and corrosion-resistant coating. Type III is the thickest form of anodizing and is also known as hardcoat anodizing.
What are the different levels of anodizing?
Anodizing is typically classified into three different levels: light, medium, and heavy. Light anodizing is the thinnest form and is used for decorative purposes. Medium anodizing is thicker and provides better corrosion resistance. Heavy anodizing is the thickest form and provides the highest level of corrosion protection.
How thick is anodize type 3?
Type III anodizing is the thickest form of anodizing and typically ranges from 0.7 to 1.2 mils (thousandths of an inch).
What color is Type II anodize?
Type II anodizing is available in a variety of colors, including black, blue, green, red, and yellow.
Can you dye type 3 anodize?
Yes, Type III anodizing can be dyed to create a variety of colors. However, dyeing Type III anodizing is not as common as dyeing Type II anodizing.
